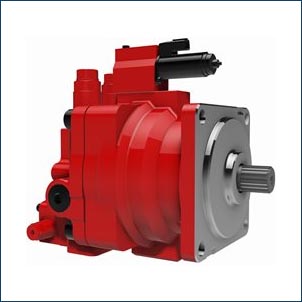

Kawasaki M5X Axial Piston Motor
Kawasaki Axial Piston Motor – M5X
The M5X series is an extremely compact fixed displacement swash plate type axial piston motor with built-in parking brake designed for the swing function of excavators, cranes and other construction machinery.

  • 80, 130, 180 and 250cc displacements
  • 330 bar continuous pressure rating
  • Built in anti-shock and deceleration valves
  • Available with Kawasaki swing drive gearbox



Datasheet

Click on BLUE HEADLINES to open and shut each page

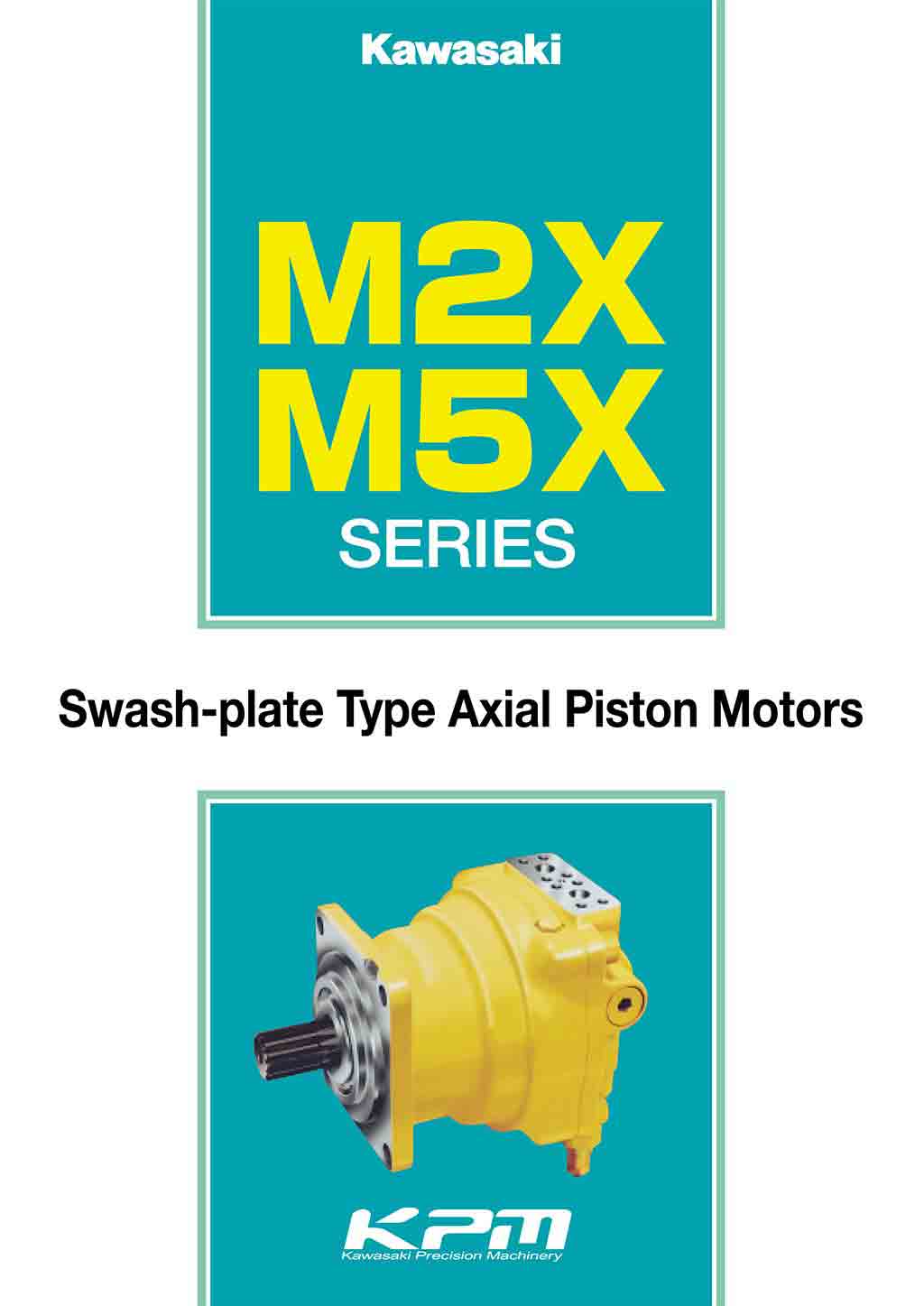

Brochure Cover Page

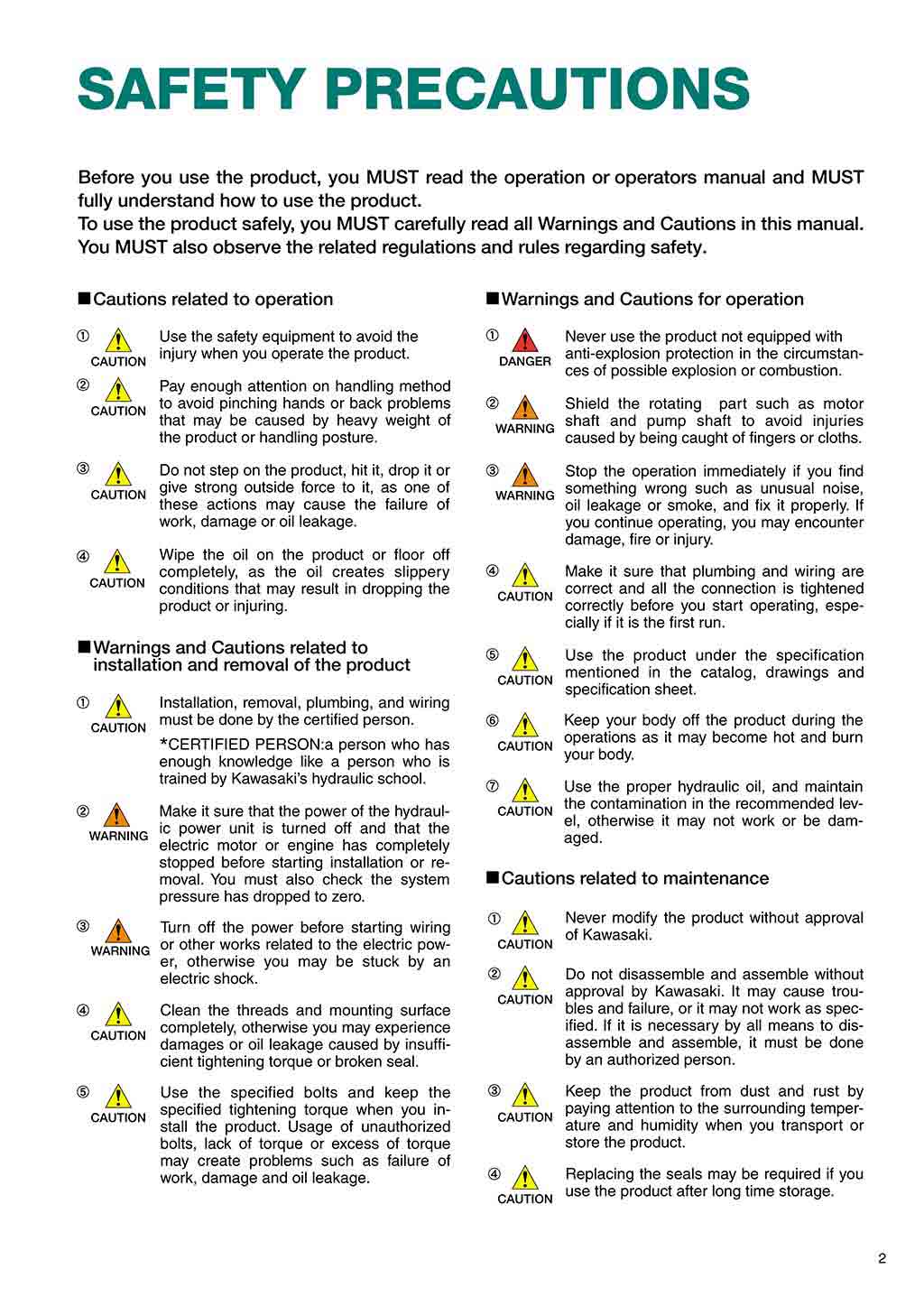

Safety Precautions

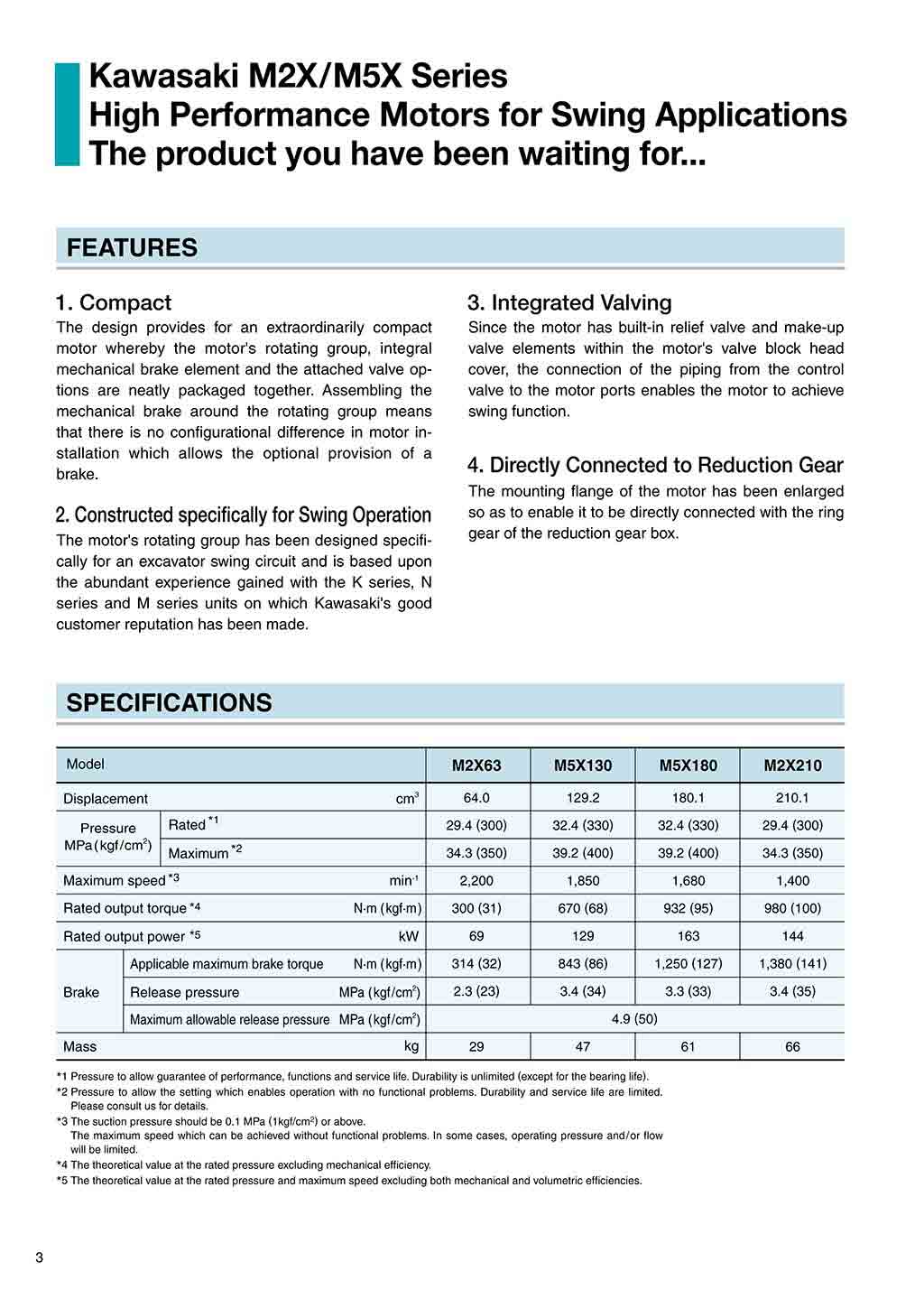

Features and Specifications

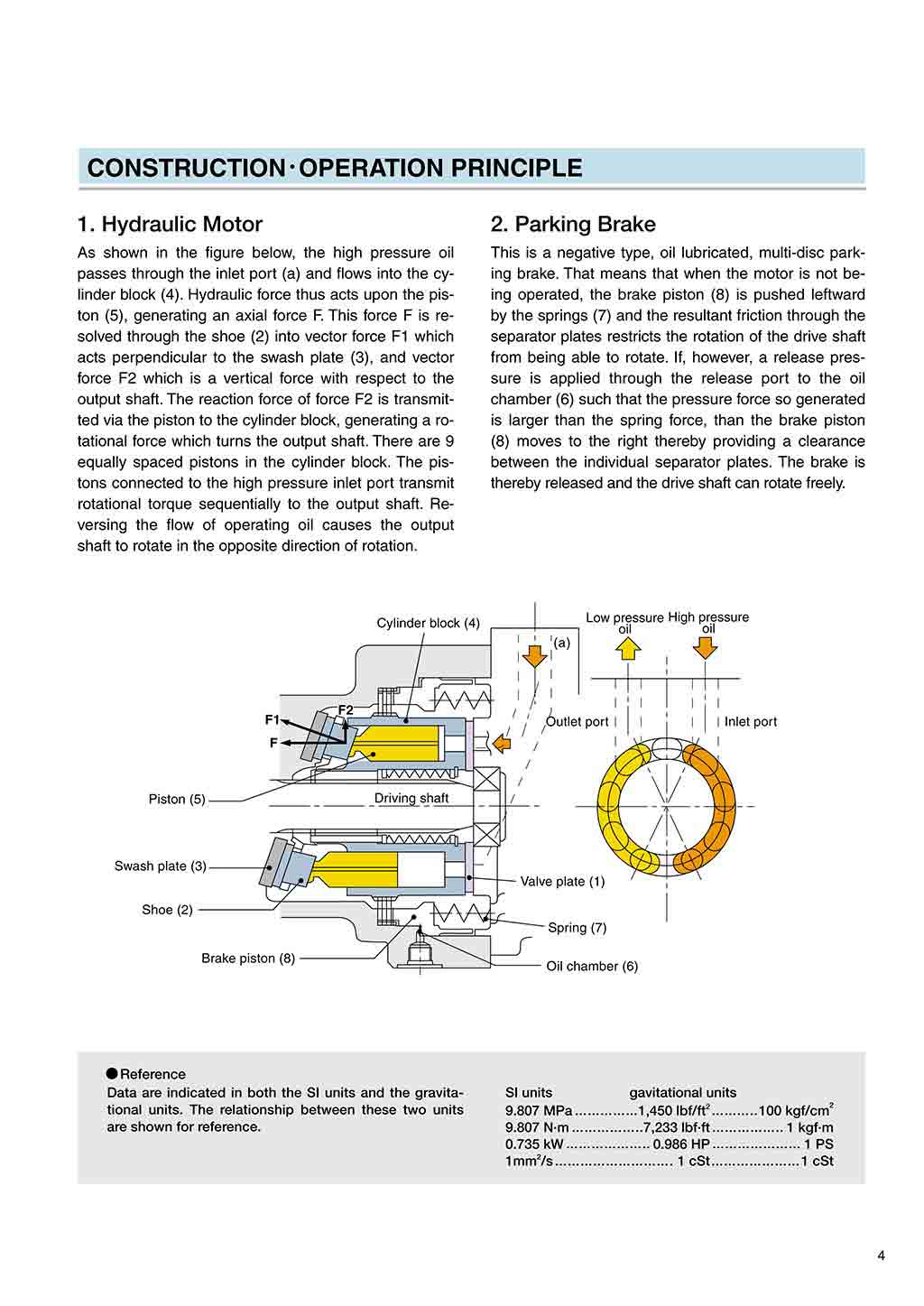

Construction - Operation Principle

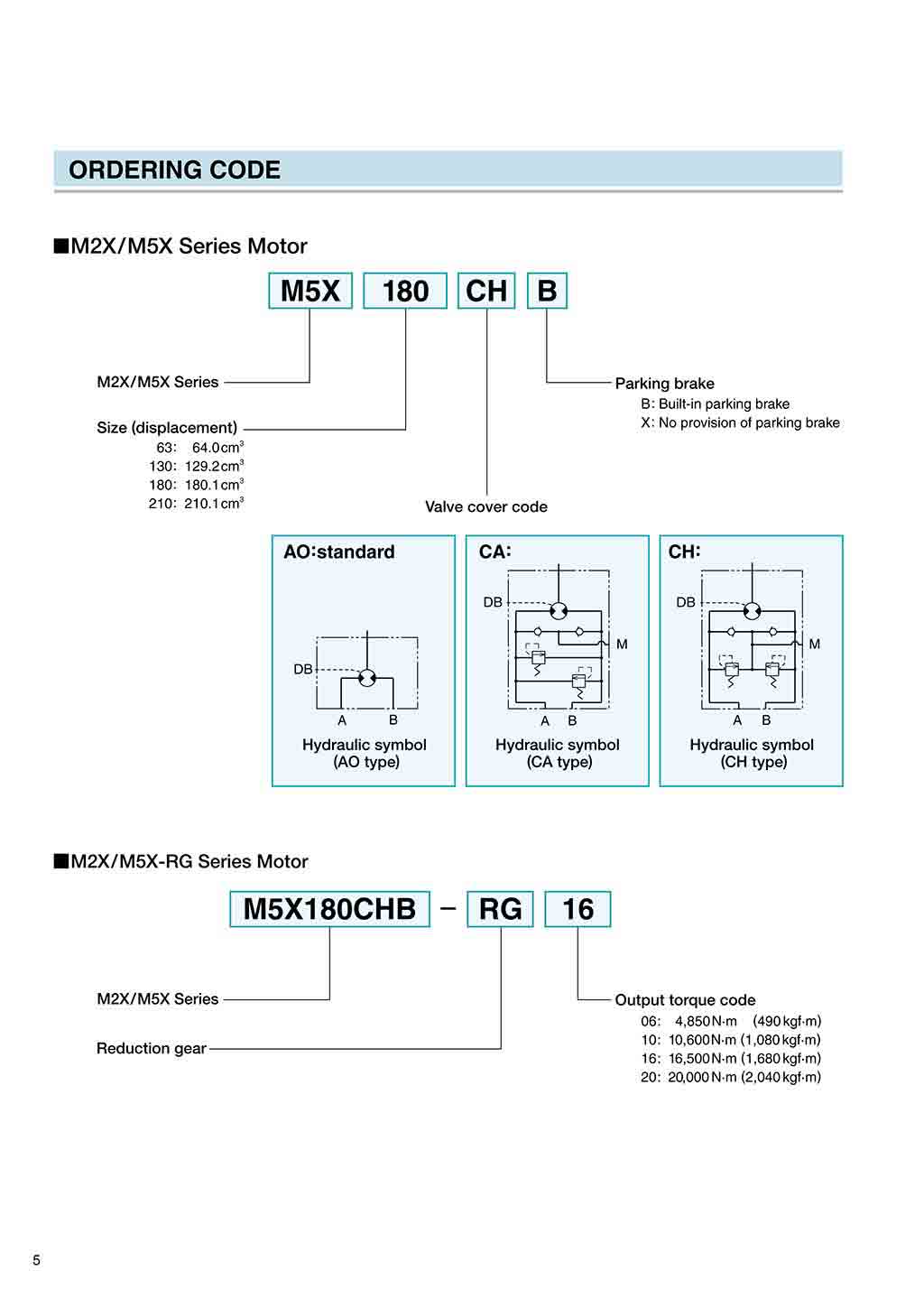

Ordering Code

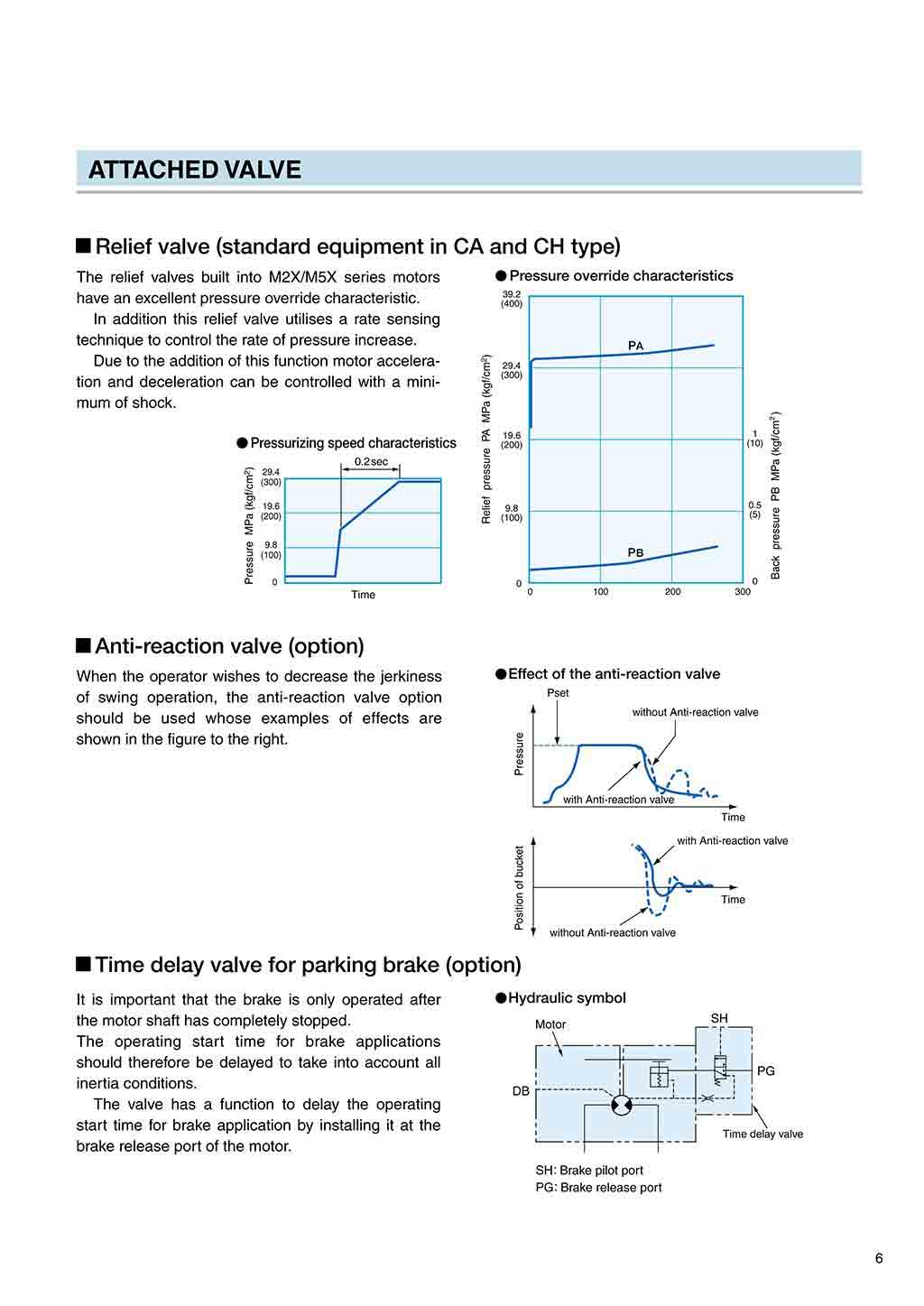

Attached Valve

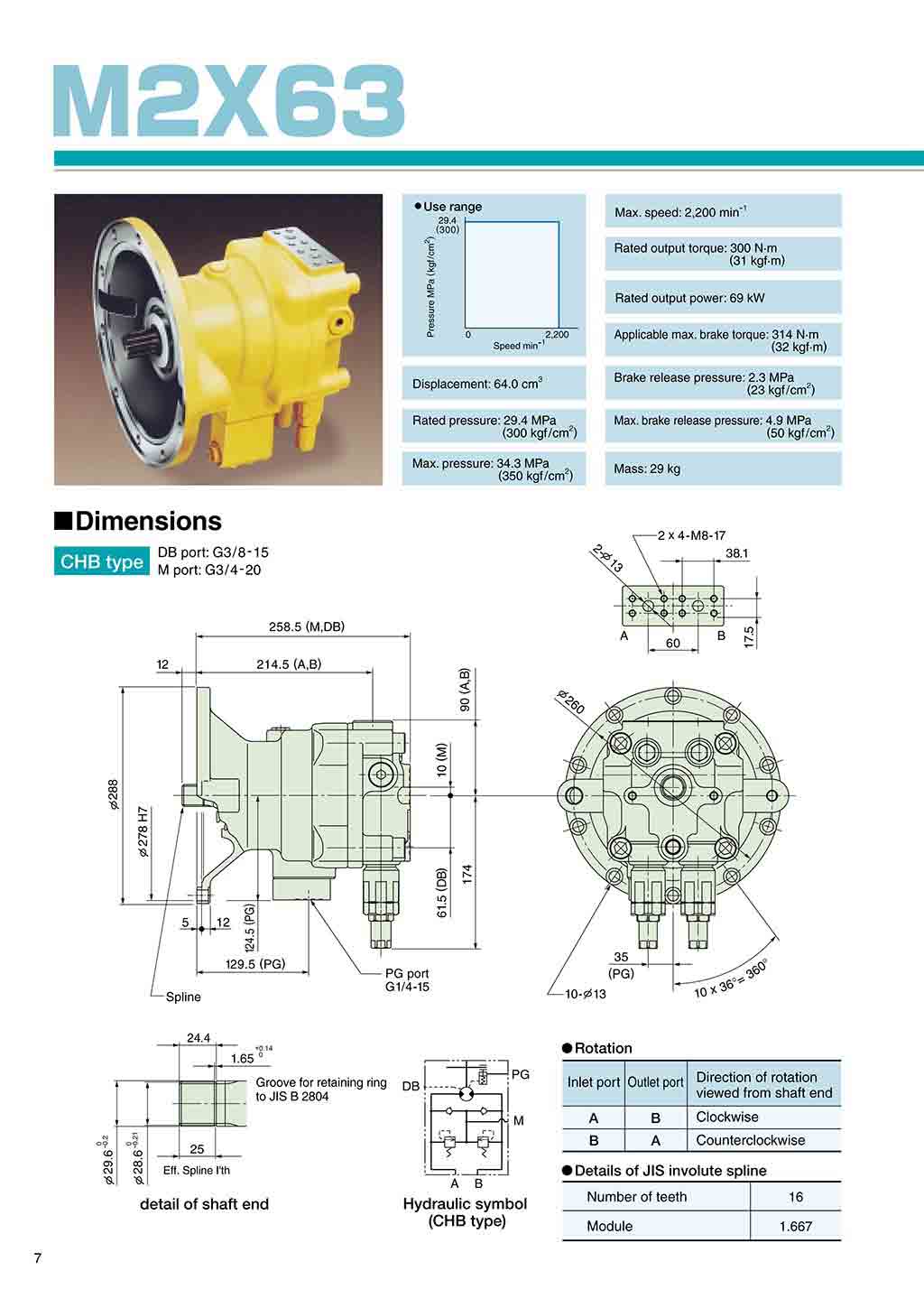

M2X63 - Dimensions

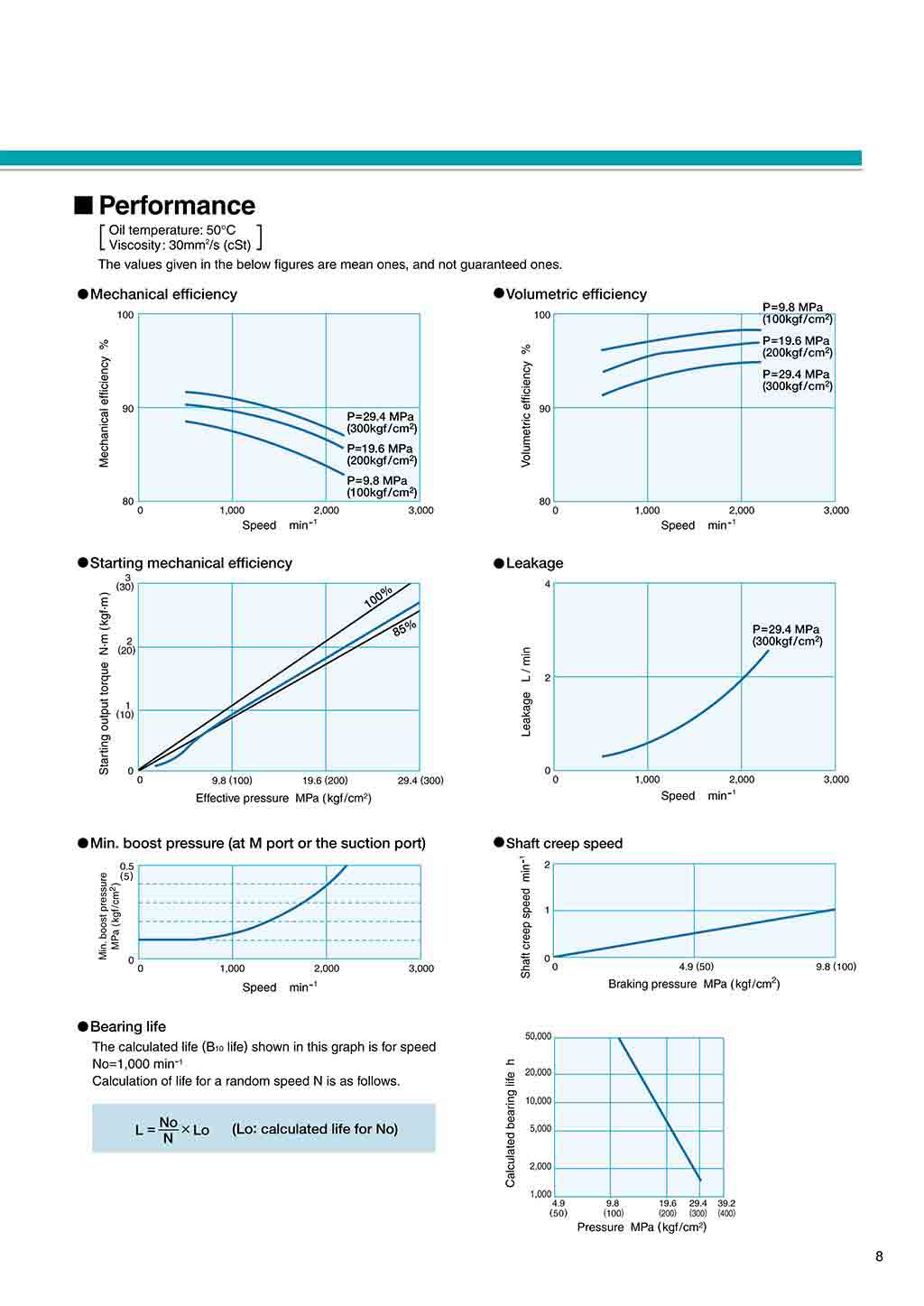

M2X63 - Performance

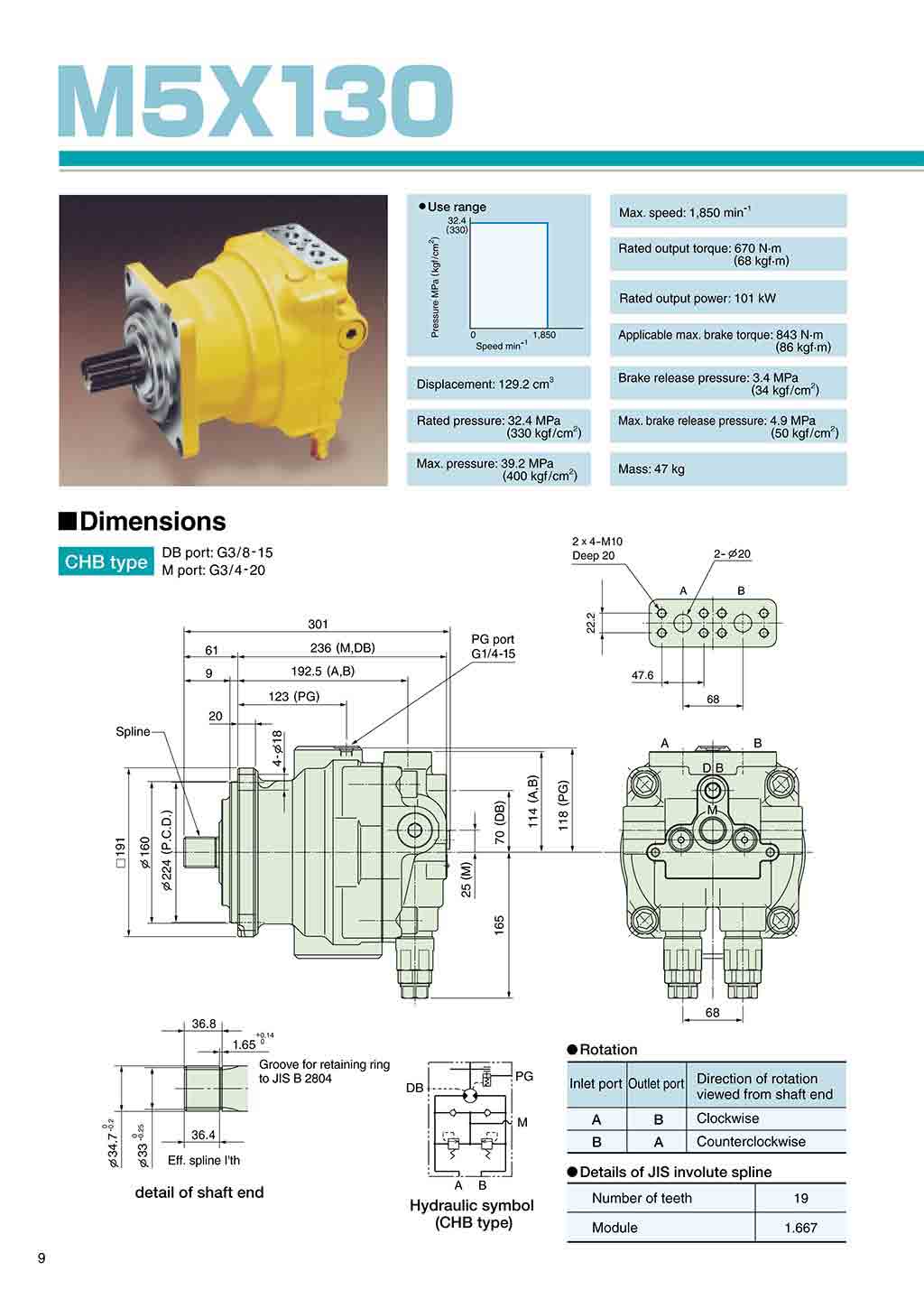

M5X130 - Dimensions

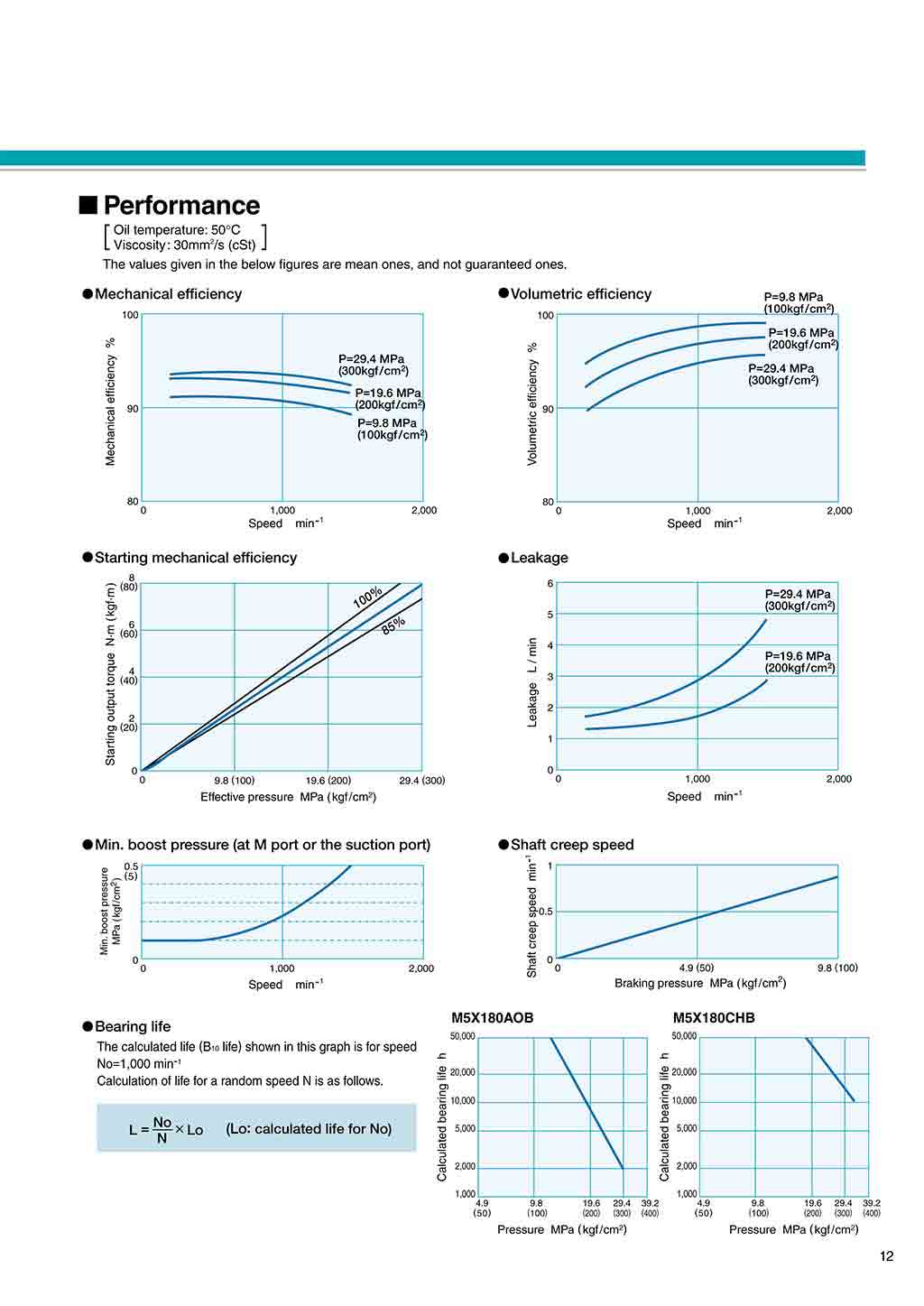

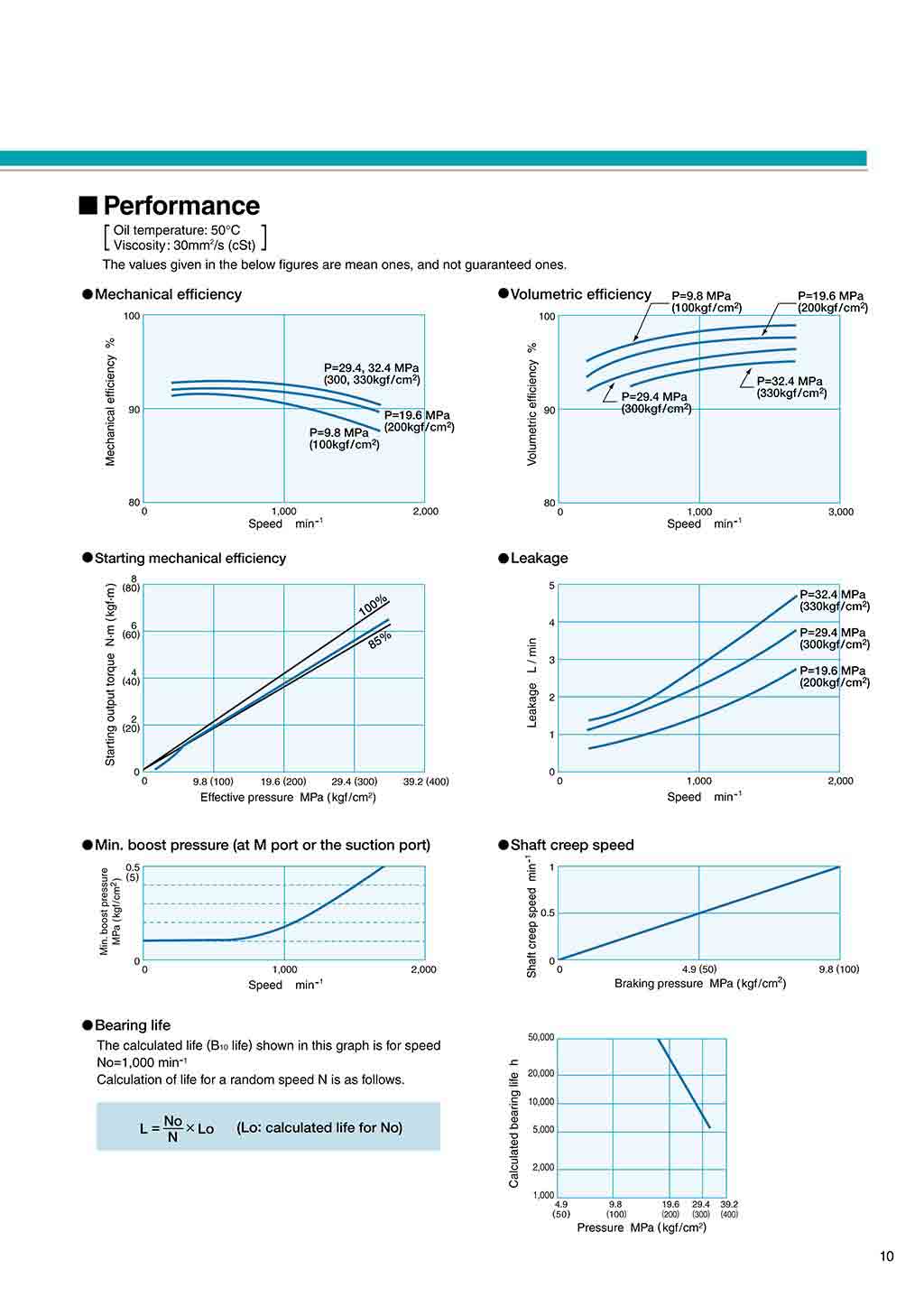

M5X130 - Performance

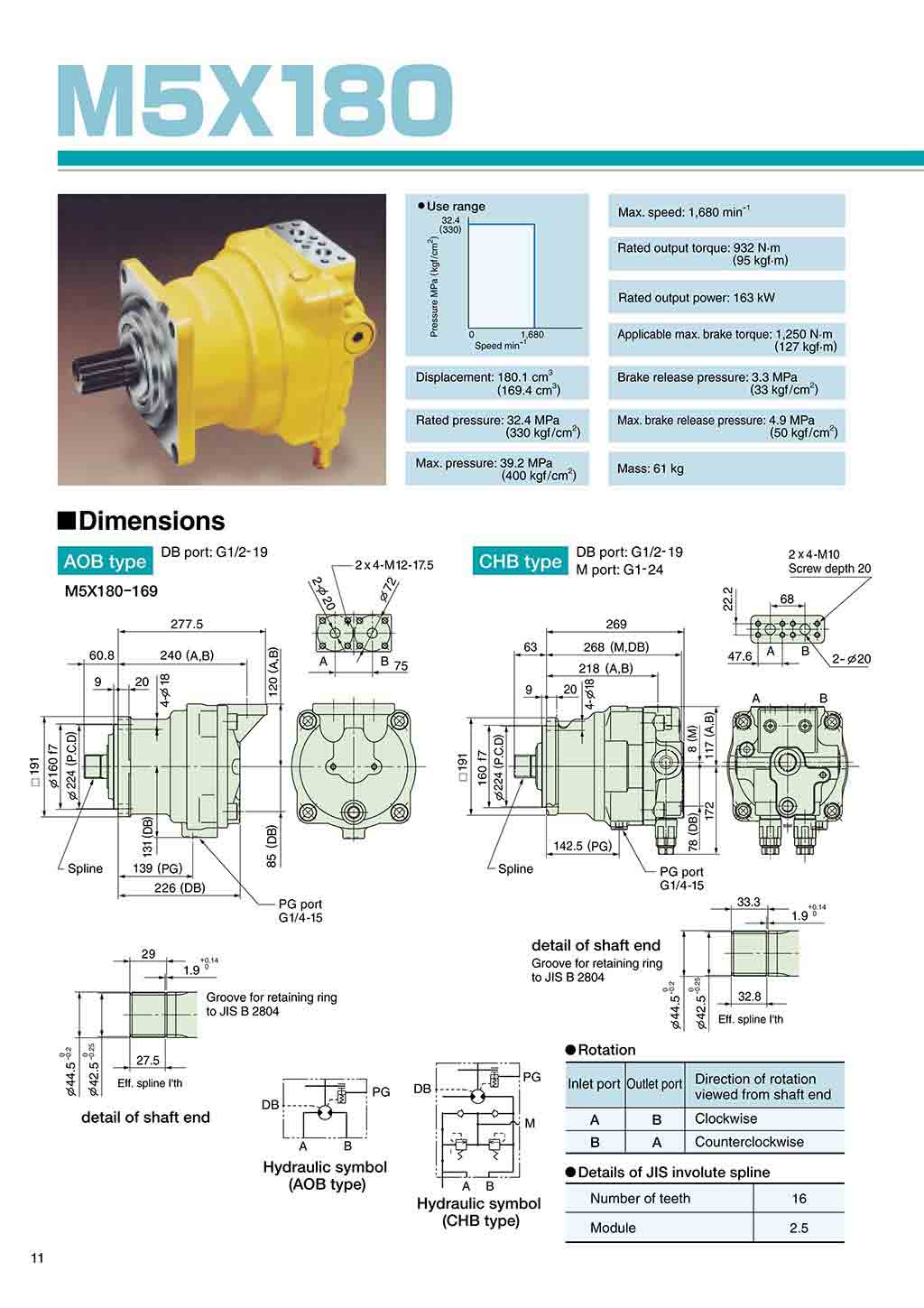

M5X180 - Dimensions

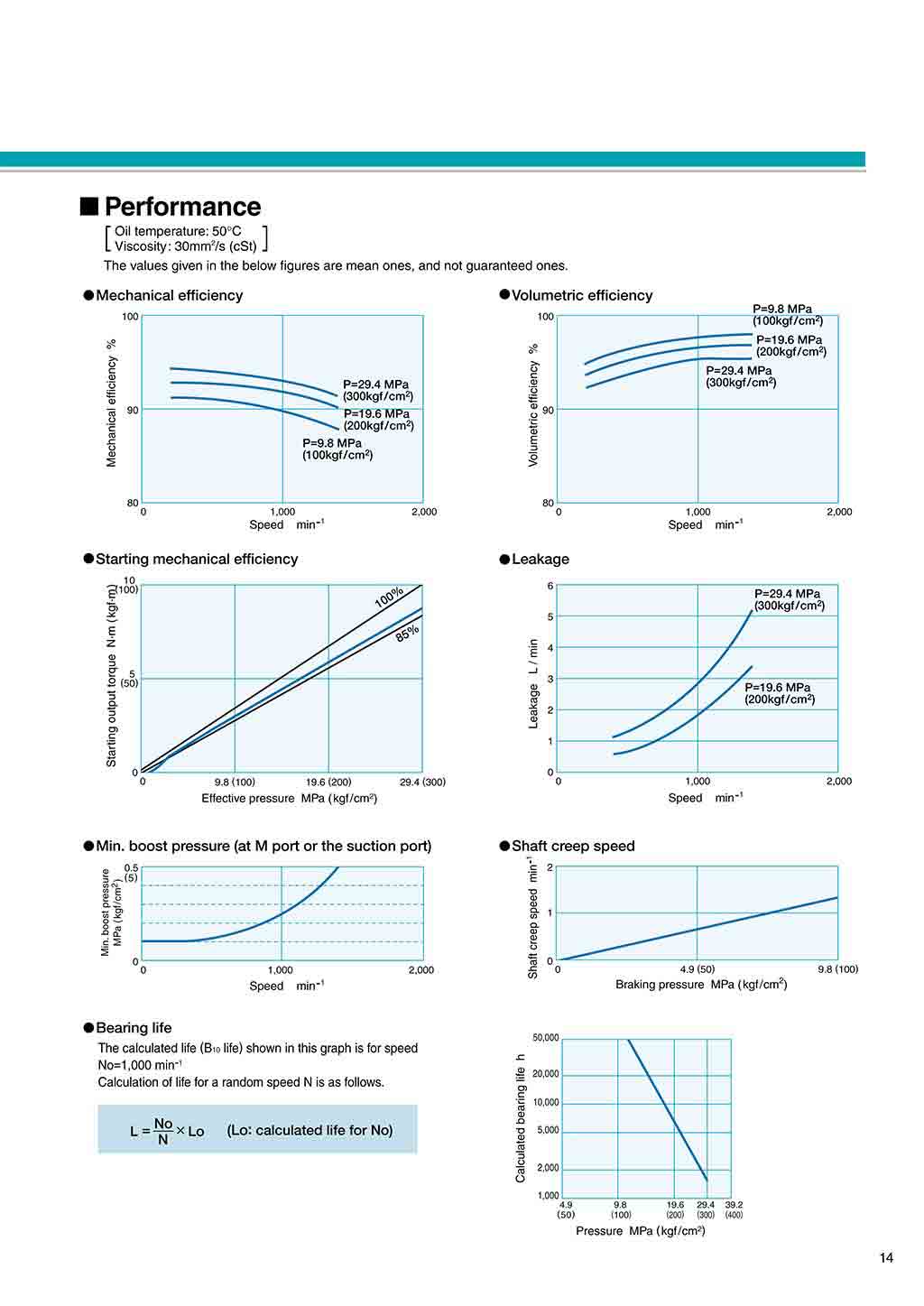

M5X180 - Performance

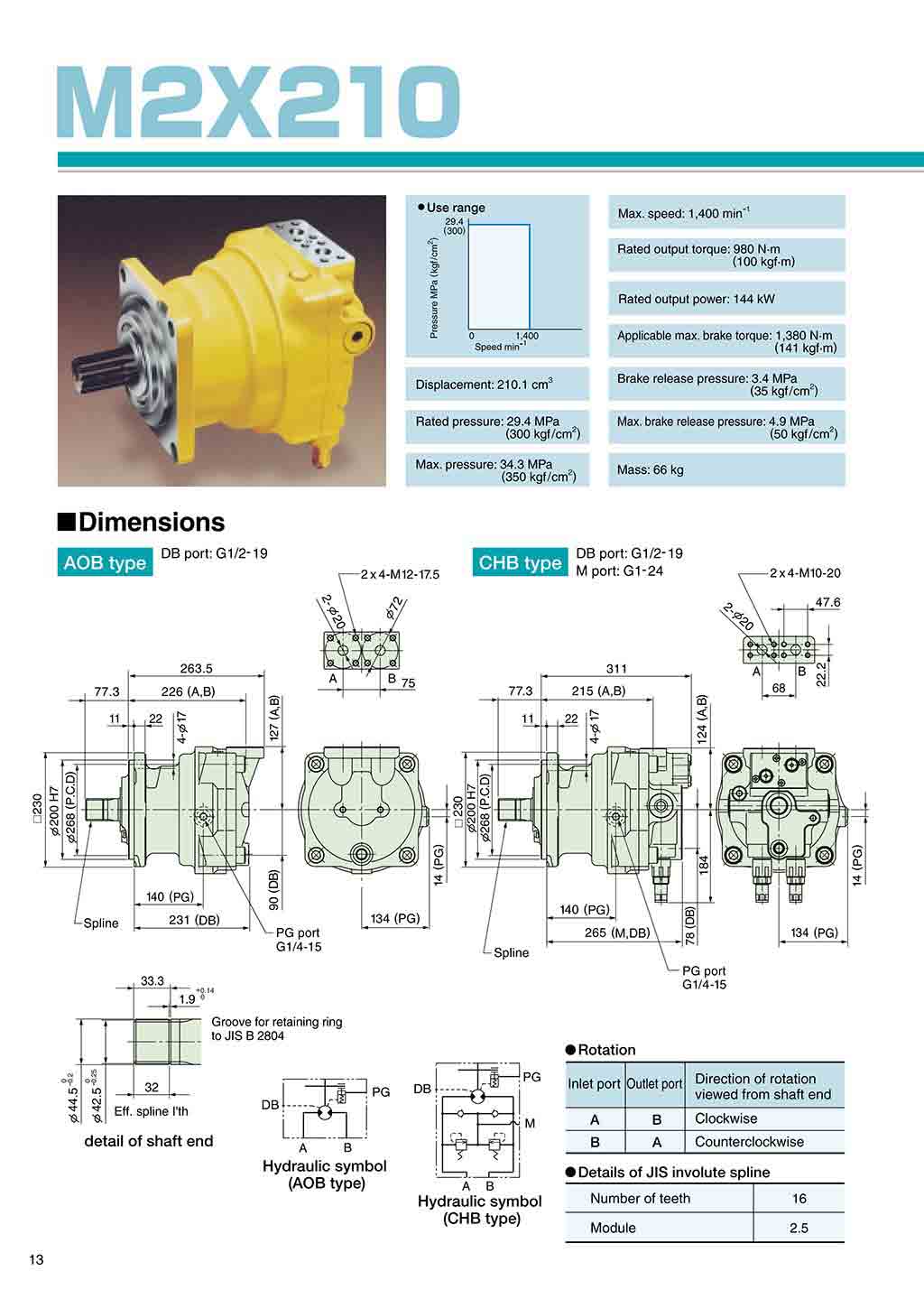

M2X210 - Dimensions

M2X210 - Performance

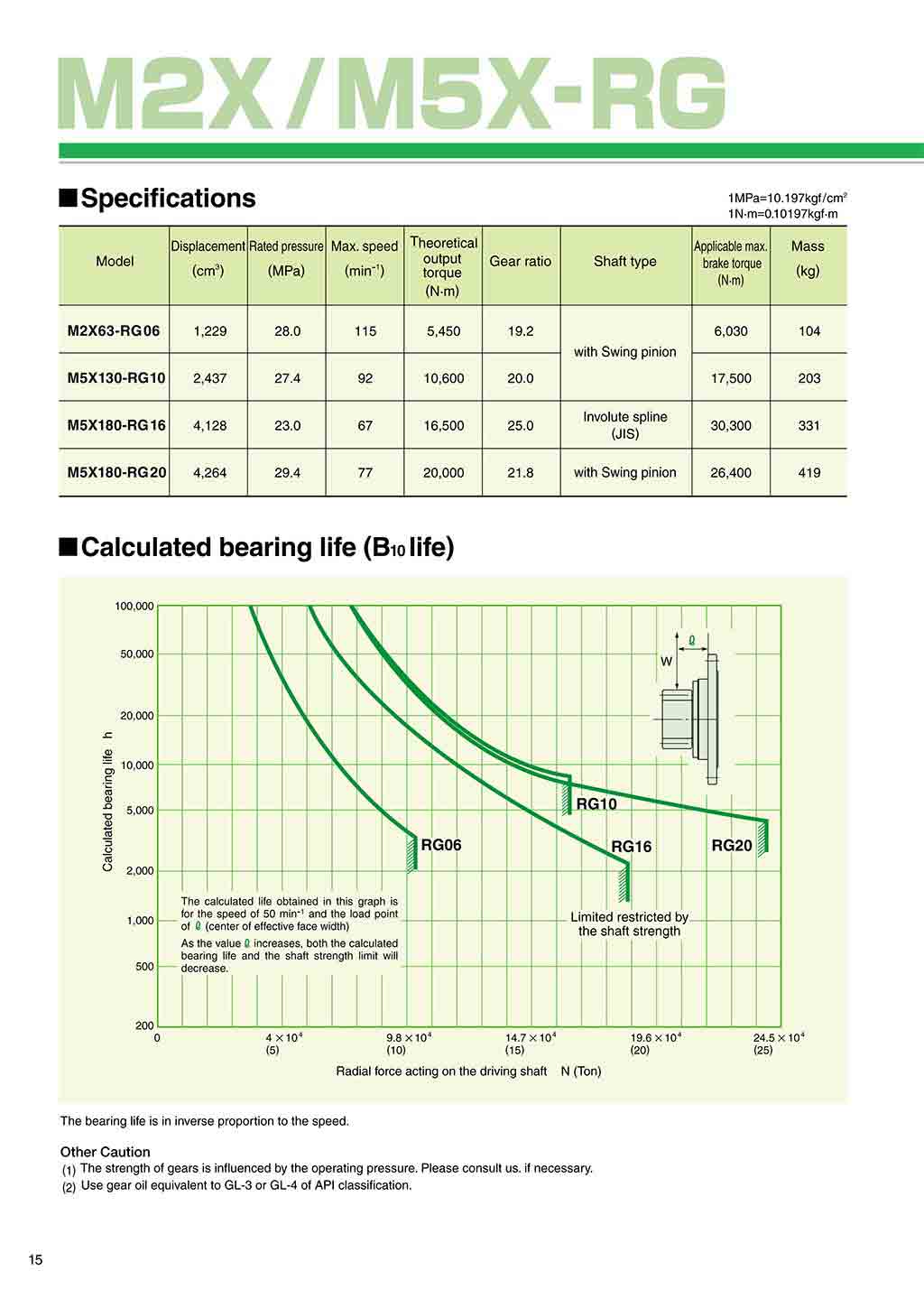

M2X / M5X-RG - Specifications, Calculater Bearing Life

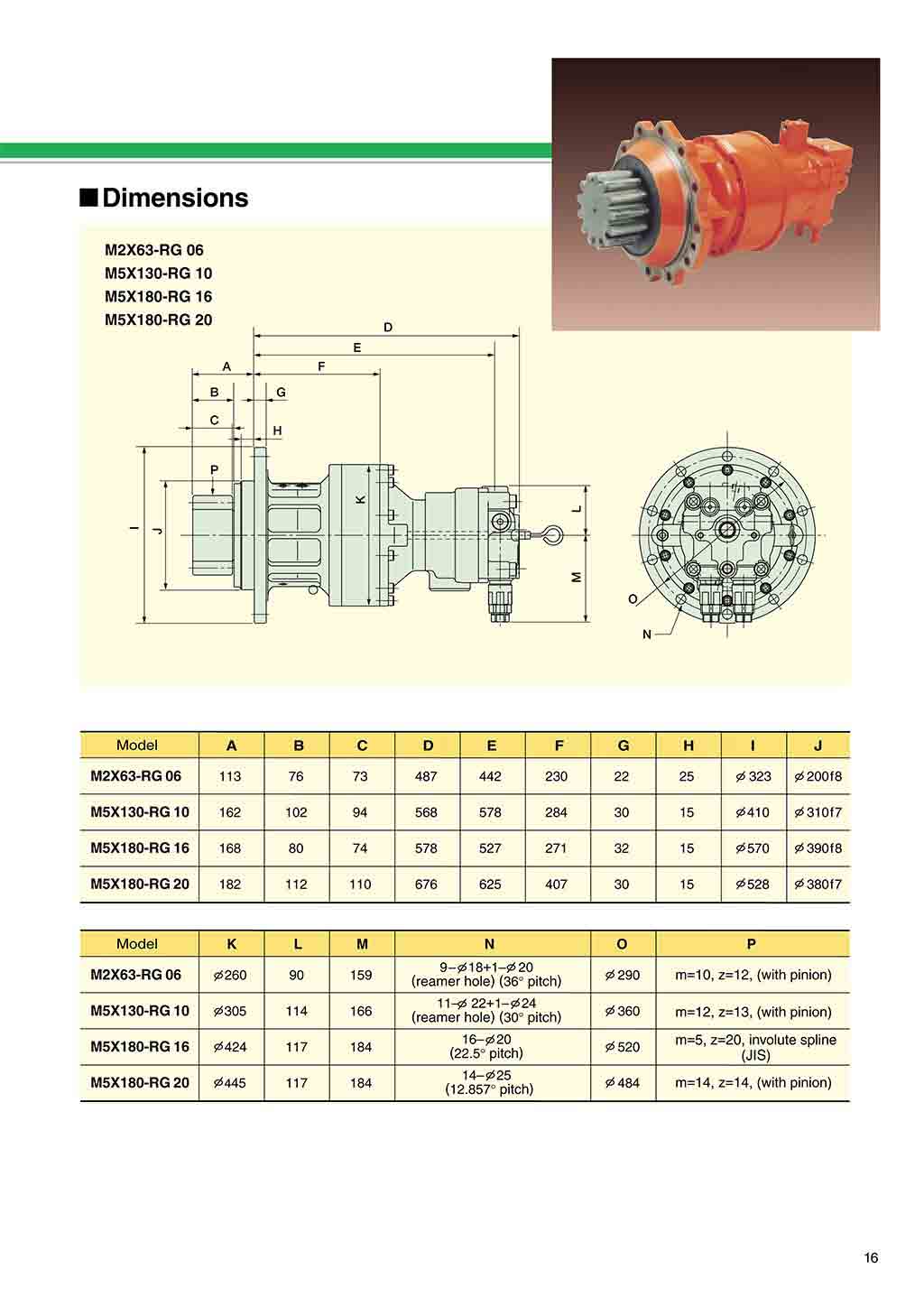

M2X / M5X-RG - Dimensions

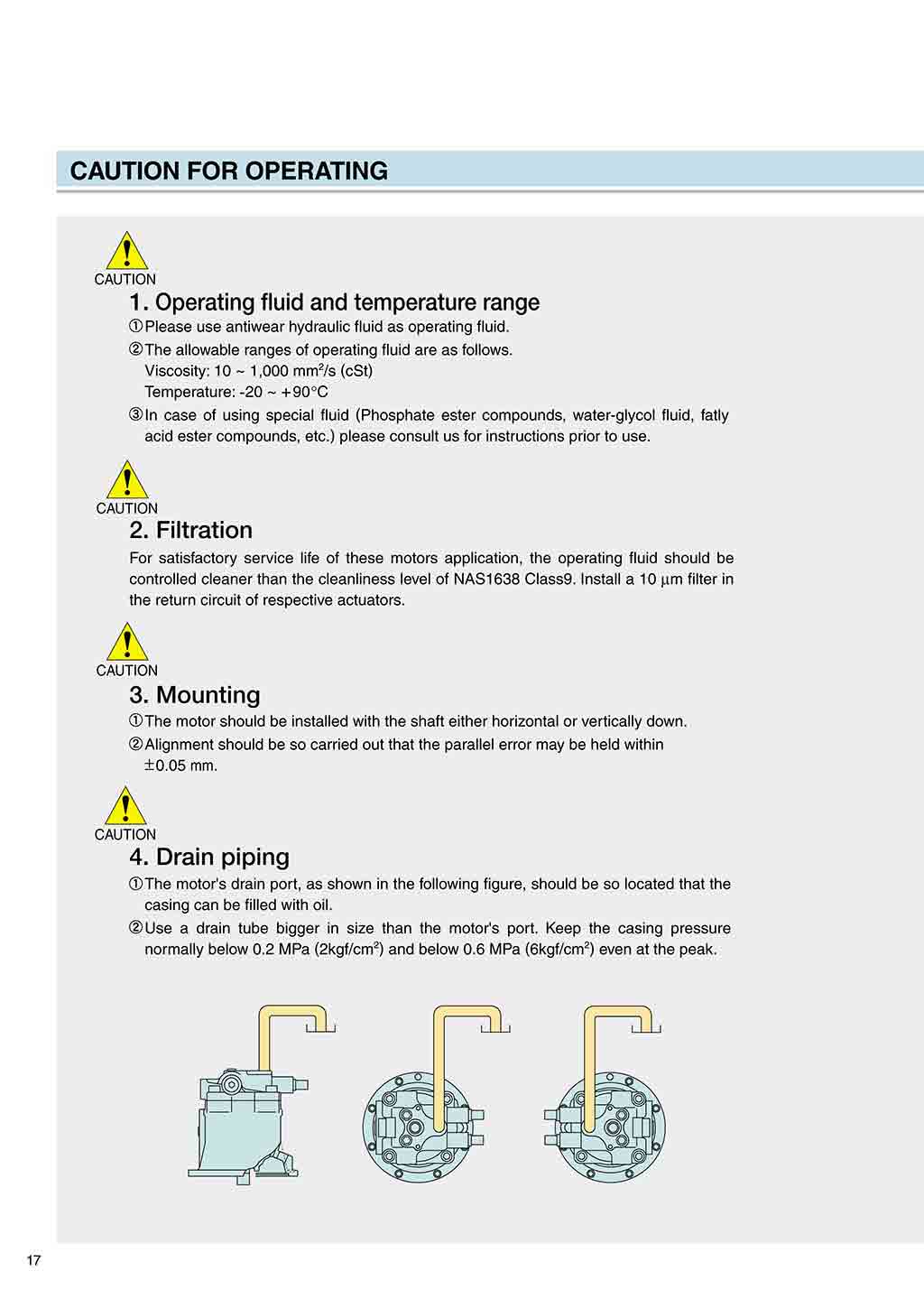

Cautionary Instructions for Operating - 1

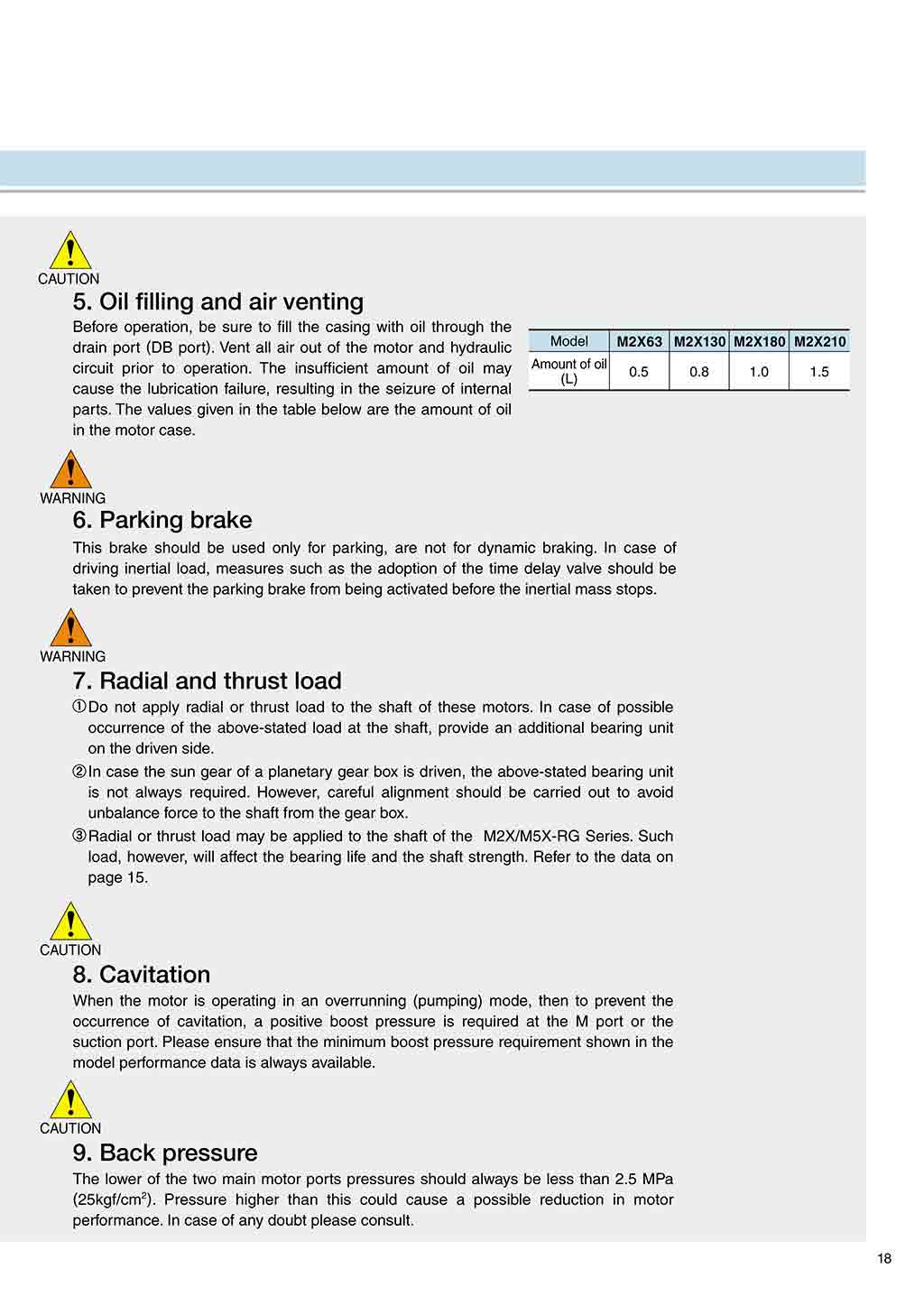

Cautionary Instructions for Operating - 2



View PDF Version

Download Brochure
